“KSB is the brand with the greatest technical expertise in pumps and valves.” This approach means that KSB employees are close to customers on all continents, providing them with pumps and valves for almost all applications involving the transportation of fluids. A comprehensive range of services rounds off this customer-focused portfolio.

KSB has been growing continuously since it was founded in 1960. Today the KSB in India is a leading international manufacturer of pumps and valves and has a presence on all continents with its own sales and marketing companies, manufacturing facilities and service operations. More than 2,000 employees generate annual consolidated sales revenue of over two billion euros.

Design

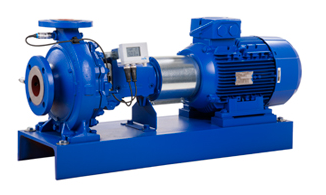

Horizontal, long-coupled, single-stage volute casing pump with ratings and main dimensions to EN 733 in back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings. Design to ATEX.

Application

Spray irrigation, irrigation, drainage, district heating, water supply systems, heating and air-conditioning systems, condensate transport, swimming pools, fire-fighting systems, handling of hot water, cooling water, fire-fighting water, oil, brine, drinking water, brackish water, service water, etc.

Design

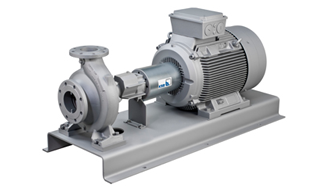

Horizontal, long-coupled volute casing pump in back pull-out design with ratings and main dimensions to EN 733, single-stage, with replaceable casing wear rings. Design to ATEX.

Application

Heat transfer systems (DIN 4754, VDI 3033) or hot water recirculation (DIN 4752).

Design

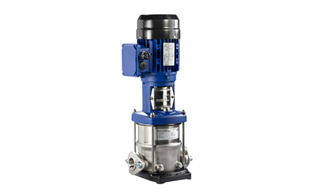

Multistage, vertical, high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. ATEX-compliant version available.

Application

Spray irrigation, irrigation, washing, water treatment, fire-fighting and pressure booster systems, hot water and cooling water recirculation, boiler feed systems etc.

Sizes

2, 4, 6, 10, 15, 25, 40, 60, 90, 125

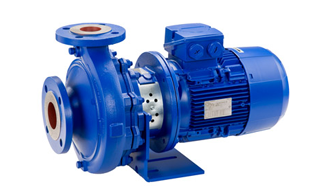

Design

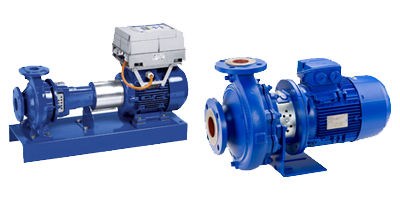

Close-coupled, single-stage volute casing pump, ratings to EN 733, with replaceable shaft sleeve and casing wear rings. Design to ATEX.

Application

Spray irrigation, irrigation, drainage and water supply systems, heating and air-conditioning systems, condensate transport, swimming pools, handling of hot water, cooling water, fire-fighting water, seawater, oil, brine, drinking water, cleaning agents, brackish water, service water, etc.

Design

The ideal pressure boosting system for diverse array of applications Driving the highest quality standards KSB now brings the new range of moviBoost; an advanced, smart, automatic pressure boosting unit with 2 to 6 high pressure pumps developed with state-of-the-art technology and the best materials to meet our customers' growing demands. Applicable for a wide range of appliactiosn in industry and construction, the new moviBoost series is more energy effeicient, robust and-user friendly with KSB German controller.

Pressure boosting in

• Resedential buildings
• Hospitals
• Offices
• Hotels, departmental stores, industry etc.

Design

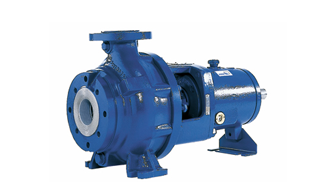

Horizontal, radially split volute casing pump in back pull-out-design, single-stage, single-entry, available with various impeller types: non-clogging impeller, open multi-vane impeller, free-flow impeller. Design to ATEX.

Applications

Handling of pre-treated sewage, waste water, all types of slurries without stringy substances and pulps up to 5 % bone dry with a maximum density of 1.4 kg/dm3.

Download Catalogue

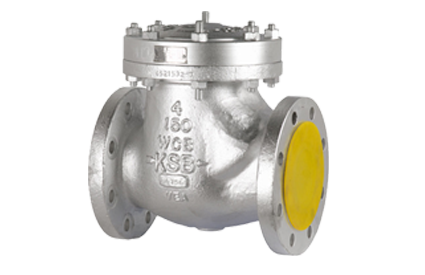

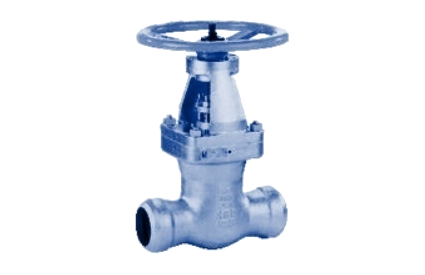

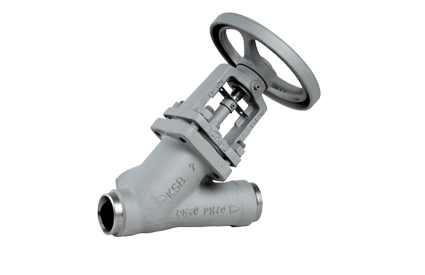

We offer a wide range of products for broad fields of applications. These are butterfly-, gate-, globe-, check-, control-, diaphragm-, ball-valves and strainers as well as actuators and automation systems being manufactured in 14 production sites worldwide and distributed as well all over the world.
